EPIQ Sidekiq X4 1MHz至6GHz 800MHz瞬时带宽高性能多通道嵌入式软件无线电收发板卡

Sidekiq^TM X4

A high bandwidth, multi-channel RF transceiver for advanced RF solutions

1MHz - 6GHz

EPIQ Sidekiq X4 高性能1MHz至6GHz多通道嵌入式软件无线电收发板卡

Sidekiq X4 技术指标datasheet下载

概述

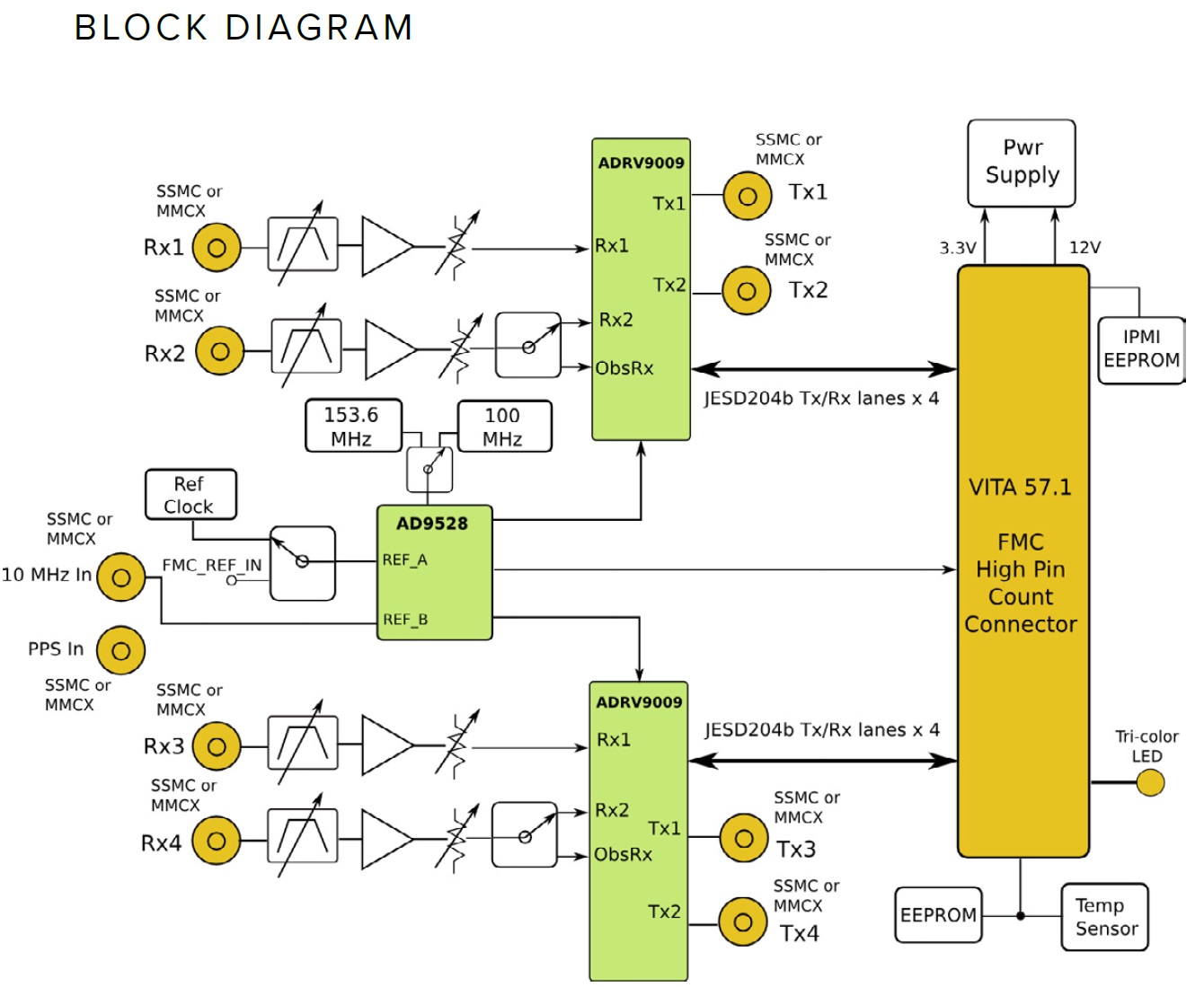

EPIQ sidekiq X4基于两片ADRV9009开发，扩展了频率范围至1MHz至6GHz，每个接收通道都集成了RX预选滤波器。

接收通道（Rx）性能指标

频率范围：1MHz至6GHz。

频率步进：<5Hz

灵活的射频前端（4通道）：

1、四路相参的接收通道

2、两两组合相参的接收通道

瞬时带宽：800MHz（每通道200MHz）

噪声系数：<8dB

接收三阶截点：+8dBm（典型值）

最大A/D采样率：245.76Msamples/sec

A/D采样：16位

接收增益模式：AGC

预选滤波器：七组预选滤波器（每通道）

发射通道（Tx）性能指标

灵活的射频前端（4通道）：

1、四路相参的发射通道

2、两两组合相参的发射通道

频率范围：

1 MHz 至6 GHz

频率步进：<5Hz

瞬时带宽：每个通道200MHz

发射增益：0-80 dB, 1 dB steps

发射功率：高达+5 dBm

最大D/A采样率：245.76Msamples/sec

D/A采样：14位

数字处理参数

A/D and D/A interface to Host System

JESD204b

Additional I/O from Host

I2C + singled-ended GPIO

PPS 秒脉冲接口

Direct to host system FPGA (for timestamping)

PPS Input

Direct to host system FPGA (for timestamping)

10 MHz 参考时钟输入接口

SSMC

10 MHz 参考时钟

For phase locking card to external system

其他参数

Form Factor

VITA57.1 High Pin Count FPGA Mezzanine Card (FMC)

Thermal Management

Convection cooled (conduction option on request)

功率：

7-14Watts (depending on # of channels in use)

操作温度

-40 to +85 degrees C

RF 接口选件

MMCX, SSMC and SMP

Sidekiq X4 开发平台

Sidekiq X4 supports lab and field deployments with a COTS PCIe-based FPGA carrier card and a GPS disciplined oscillator card integrated into a ThunderboltTM 3 chassis. For ruggedized deployments, Sidekiq X4 can be integrated into COTS 3U or 6U VPX carrier cards. Both conduction and convection cooled options are supported. The Sidekiq X4 Platform Development Kit (PDK) provides customers with access to both a software API for interfacing to the card, as well as the source code for the FPGA reference design targeting a Xilinx Kintex® UltraScale™ XCKU060 device.
